5-Axis Multi-Tasking Machining Center MX-T Series
MX-T Series
NEW

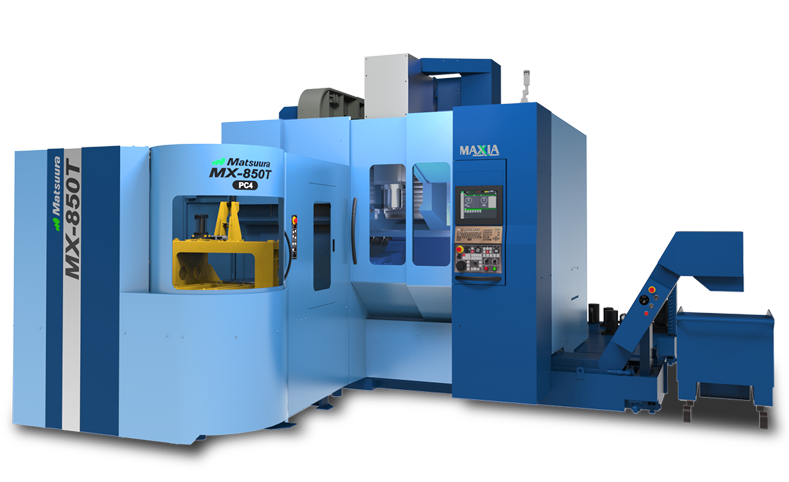

5-Axis Multi-Tasking Machining Center
MX-850T PC4
MiOS 4
Designed for Large Workpieces
(Machinable workpiece volume approx. 3.3x* / weight approx. 2.5x*)*Compared to MX-520T
- Simple Operation of 5-Axis MX Series
- Automation
- Turning
5-Axis Multi-Tasking Machining Center
MX-520T PC4
MiOS 4
- Simple Operation of 5-Axis MX Series
- Automation
- Turning
Pickup
01 Simple Operation of 5-Axis MX Series
A multi-tasking machining center that combines 5-axis machining and turning process, while retaining the user-friendliness of the MX Series.
Excellent accessibility
New Operating System
MiOS 4
- Supporting high-mix low-volume production and extended operation
- Inuitive operability for setups
- Secure and reliable unmanned operation
02 Automation
Extended Unmanned Operation
-
PC4 (Floor Pallet System)
Option
-
PC7 (Tower Pallet System)
Option
-
90-tool magazine
Option
-
Lift-up conveyor
03 Turning
・Turning Spindle Torque 500Nm C-shaft 800min-1（Turning Mode) / MX-520T
・Turning Spindle Torque 600Nm C-shaft 800min-1（Turning Mode) / MX-850T
Achieves excellent turning ability
-
Turning（shaft）
-
Turning（housing）
Other 5-Axis Multi-Tasking Machining Centers
Model Specifications
| unit | MX-520T | MX-850T | |
|---|---|---|---|
| Max. Work Size (for PC4) | mm | D520 x H350 (D520 x H330) | D850 x H450*with restrictions (D850 x H385*with restrictions) |
| Loading Capacity (for PC4) | kg | 200 (175) | 500 (400) |
| Travel: X/Y/Z | mm | 630/560/510 | 900/780/650 |
| Travel: A/C | deg | -125 ~ +10/360 | -125 ~ +30/360 |
| Working Surface (for PC4) | mm | D300 (D400) | D500 (D630) |
| 主軸回転速度 | min-1 | 12,000 | 12,000 |
| Spindle Speed: X/Y/Z | m/min | 40/40/40 | 40/40/40 |
| Rapid Traverse: A/C | min-1 | 33/100(turning mode800) | 20/100 (turning mode 800) |
| Number of Tools |
60 : HSK-T63 Standard 90 / 120 : HSK-T63 Option |
60 : HSK-T63 Standard 90 / 120 : HSK-T63 Option |
|
| Number of Pallets |
4:Floor Pallet System Option 7:Tower Pallet System Option |
4:Floor Pallet System Option 7:Tower Pallet System Option |
|
| NC System/ OS |
Matsuura G-Tech 31i MiOS 4 |
Matsuura G-Tech 31i MiOS 4 |
